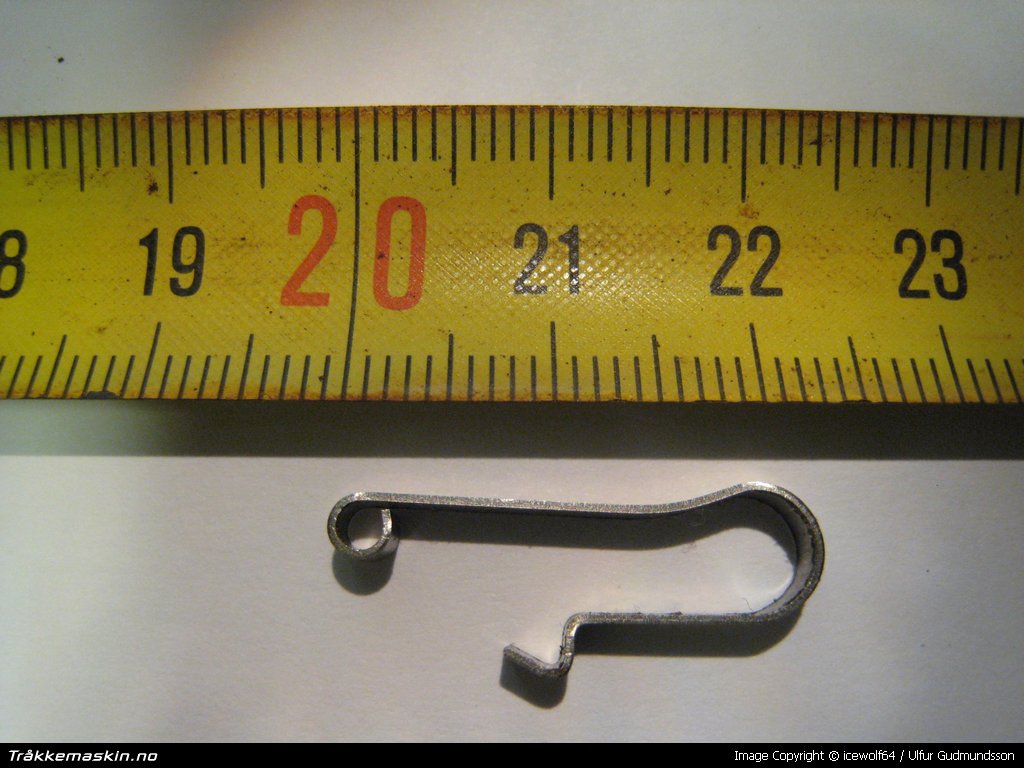

It is the spring of the winch potentiometer. I known it because it broke on our 600.

Kommentert av: Luca Zardini Zesta
Dato: 22.01.2009 11.05.47

luca.. do you have a blueprint of the joystick?? ot got loose on our 600.. and when i took it a part this thing came out and we dont know where to put it .. i thing it has something to to with the upper wheel on the joystick (the one who control´s the pressure on the track´s system for cross contry ski´s)

Kommentert av: Hilmar Örn þorbjörnsson
Dato: 28.01.2009 22.31.53

its for the sero position on the upper wheel.on a park its for the roll sylinder and on the winsj the tonnasj :)

Kommentert av: Rune Lyberg
Dato: 28.01.2009 22.46.06

i tought it was for the zero position.. but i just dont know where to fit it in the joystick... need blueprints..

Kommentert av: Hilmar Örn þorbjörnsson
Dato: 29.01.2009 21.51.35

i think you have to order the joystick as one part.... its just 2 selections whit or whitout the hydraulick part..So if you order the electrical part you should do allright.

Kommentert av: Rune Lyberg
Dato: 29.01.2009 23.40.49
