Maskindetaljer Sted / Land
» Kässbohrer Pisten Bully
» PB 300 ParkBully
Island » Hlídarfjall Premier Skiresort
» Island
Dato Fotograf
» 29.12.2010 » Ulfur Gudmundsson

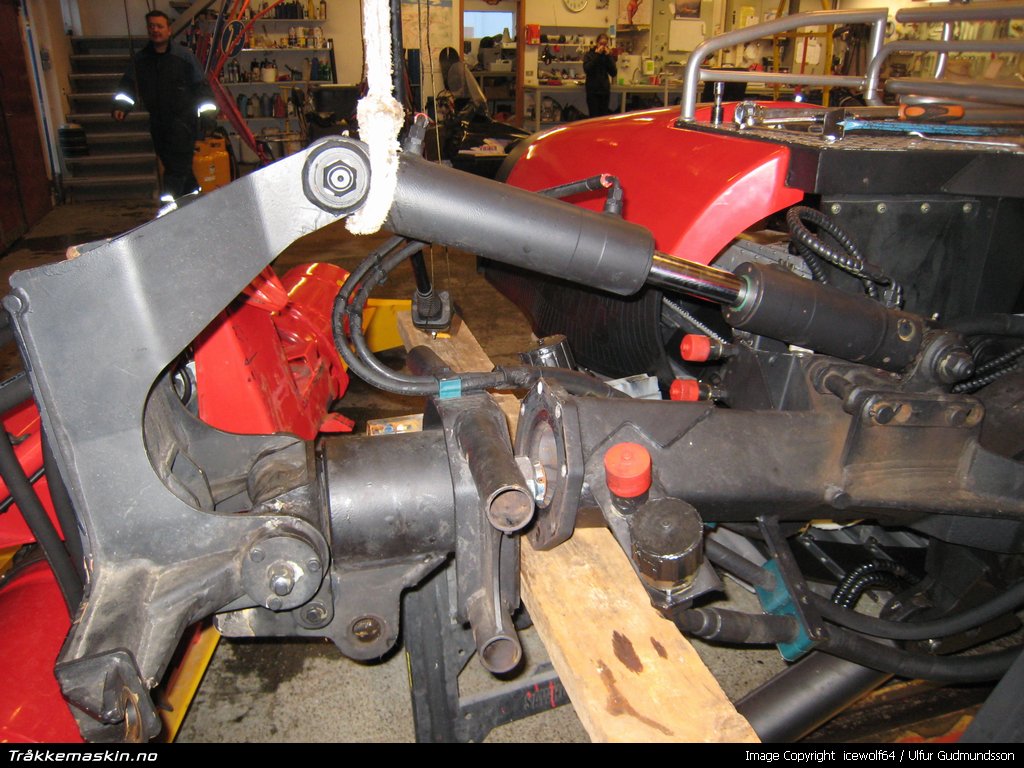

Kommentar Halli what did you do.!!!!!!! I know it was not you but your team workers asked if I would send it in.


Kommentarer

Did the M16 screws break?

When this happens (particularly on Parkbully) we at my workshop replace the screws with 12.9 screws and also weld the pieces together with three beads. One on the top and one 5 o'clock and lastly one bead at 8 o'clock.
This way it is possible, without too much effort, to cut it apart again and loosen the scews if one for some reason need to dismantle the pendulum head again (replacing rubber bushing for instance).

// Benjamin

Kommentert av: Benjamin Johansson
Dato: 12.01.2011 18.04.36
